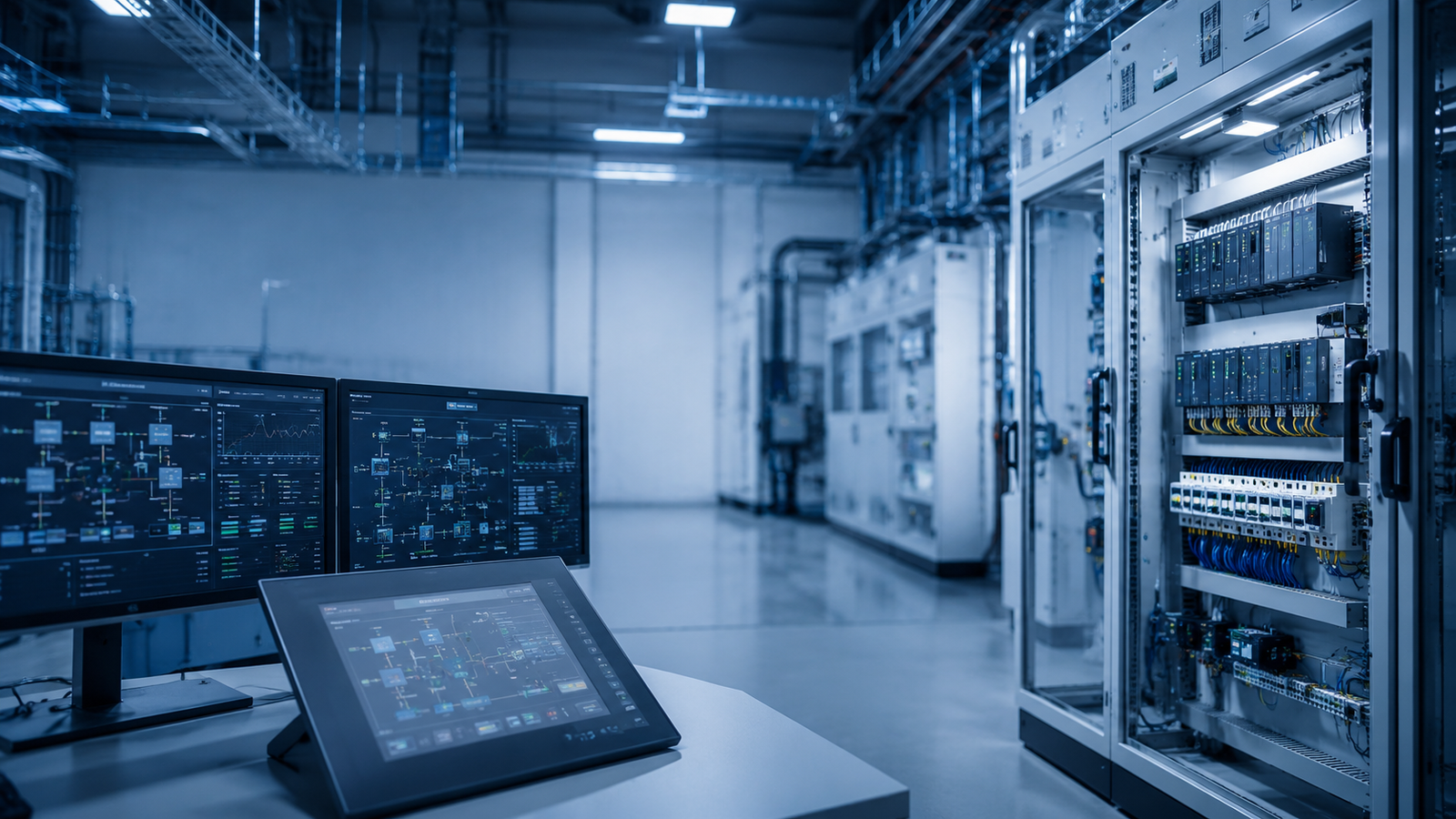

PLC, HMI & SCADA Integration in Process Plants

PLC: Control, Protection, and State

The PLC receives field inputs, executes permissives and interlocks, controls outputs, runs sequences, manages operating states, and generates the alarm conditions required by the application. Critical equipment protection and process decisions remain in the PLC or appropriate hardwired safety layer; they should not depend on an HMI script or SCADA client remaining connected.

Software is more maintainable when organised around equipment and process functions. A motor module can manage command, mode, availability, feedback, start permissives, trip status, and alarm generation. A valve module can manage open/close command, travel time, end-position feedback, mismatch, and fail condition. Sequence logic then coordinates these tested modules instead of driving raw outputs directly.

The PLC also owns the defined response to communication loss, invalid analogue signals, contradictory feedback, and power restoration.

HMI: Local Operating Context

The HMI presents the plant state and the actions available to the operator. An overview should show the active process path, current sequence step, equipment availability, key measurements, and abnormal conditions. Equipment faceplates should explain why a command is unavailable, not only show whether the output is on or off.

A pump display should distinguish commanded run, proven run, ready, local mode, remote mode, process inhibit, electrical trip, and communication loss. A valve should distinguish commanded position, proven position, movement, timeout, and unavailable state. These distinctions reduce unnecessary command attempts and help maintenance identify whether the issue is electrical, mechanical, process-related, or communication-related.

Manual controls need defined limits. The HMI should show the active command source and keep approved protective interlocks active unless a controlled bypass is specifically authorised and visible.

SCADA: Plant-Level Supervision and History

SCADA consolidates multiple areas or systems, manages alarm and event history, records selected trends, and supports reporting or remote supervision where required. It should not reproduce every local HMI detail or move essential control decisions out of the PLC.

Alarm classes, priorities, acknowledgement, shelving rules where applicable, and event timestamps should be consistent across local and supervisory layers. Trends should be selected around operating questions: pressure stability, level response, pump staging, cycle temperature, conductivity transition, energy or production data, and other values that support diagnosis or performance review.

User roles, system access, backup, time synchronisation, server redundancy where justified, and data-retention requirements are part of the SCADA basis rather than late IT details.

Tag and State Consistency

The same asset must carry consistent identification across drawings, PLC tags, HMI objects, SCADA database, alarms, trends, and reports. Tag inconsistency creates translation work during every fault investigation and increases the chance of testing the wrong signal.

State definitions also need to match. If the PLC distinguishes ready, running, held, faulted, and unavailable, the HMI and SCADA should present those states consistently. A critical trip should not appear as a minor message on one layer and a high-priority alarm on another.

A controlled tag structure should include equipment identity, signal meaning, engineering units, quality or diagnostic state, and source where relevant. Communication-based data must not be presented as valid when the source device is offline.

Communications and Remote I/O

The network architecture identifies controllers, HMIs, SCADA servers, remote I/O, drives, instruments, protocol gateways, and managed switches where used. The design should define addressing, update requirements, diagnostics, segmentation, and behaviour during device or network failure.

Loss of a remote I/O station, drive, or instrument should create a clear control response and operator message. A system that continues to display the last valid value without quality indication can mislead the operator even when the PLC logic is correctly protecting the process.

FAT and Commissioning

FAT should test the architecture as one system. Test cases include normal operation, denied commands, interlock trips, feedback mismatch, manual/automatic transfer, alarm priority and acknowledgement, communication interruption, invalid analogue signals, SCADA client loss, and restart behaviour.

The objective is to confirm that the PLC makes the correct decision, the HMI explains the local state, and SCADA records and presents the event consistently. At commissioning, the same structure helps separate field faults, panel issues, software defects, and network problems.

Good integration is not measured by the number of screens or tags. It is measured by whether each layer performs its defined role and whether the operator can trace plant behaviour through a consistent control model.
